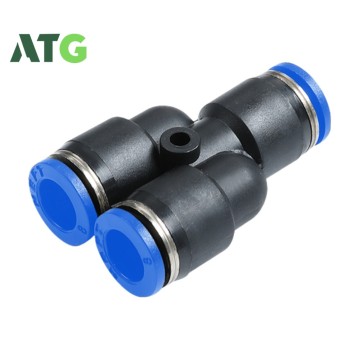

APRG Union pipe Y-type five-way
2D Drawings
Specifications
| Model | ΦD1 | ΦD2 | L1 | L2 | L3 | ΦP1 | ΦP2 | Φd |
| APRG6-4 | 6 | 4 | 36.5 | 15 | 11 | 13 | 11 | 3.2 |
| APRG4-4 | 4 | 4 | 36 | 15 | 11 | 13 | 11 | 3.2 |
| APRG8-4 | 8 | 4 | 38 | 15.5 | 13 | 14.5 | 13 | 3.2 |
| APRG8-6 | 8 | 6 | 38.5 | 16 | 13 | 14.5 | 13 | 3.2 |
| APRG6-6 | 6 | 6 | 38 | 16 | 13 | 14.5 | 13 | 3.2 |
| APRG10-6 | 10 | 6 | 44 | 17.5 | 14.5 | 18.5 | 14.5 | 3.2 |
| APRG10-8 | 10 | 8 | 44.5 | 18 | 14.5 | 18.5 | 14.5 | 3.2 |
| APRG8-8 | 8 | 8 | 43.5 | 18 | 14.5 | 18.5 | 14.5 | 3.2 |
| APRG12-8 | 12 | 8 | 53 | 21 | 18 | 21 | 18.5 | 4.2 |
| APRG12-10 | 12 | 10 | 54.5 | 22.5 | 18 | 21 | 18.5 | 4.2 |
| APRG10-10 | 10 | 10 | 54.5 | 22.5 | 18 | 21 | 18.5 | 4.2 |
Order Example
PDF
FAQ
description2
-
Q: What are the advantages of the Y-type five-way joint compared to traditional multi-way joints?
A: Traditional multi-way joints require multiple parts to be spliced together, which is prone to leakage and takes up a lot of space; the Y-type five-way joint has an integrated design, reduces connection points, has stronger sealing, and reduces maintenance costs by 50%.
-
Q: What is the maximum tolerable temperature and pressure?
A: The standard operating temperature is -50℃~200℃, and the upper pressure limit is XX MPa (fill in the actual value). For over-limit working conditions, a customized enhanced version can be provided.
